Item # 41133

Nut Plate Jig #10 Two Lug Double Wing Miniature 518ND

$32.00

Nut Plate Jig #10 Two Lug Double Wing Miniature 518ND

$32.00

PN: 41133

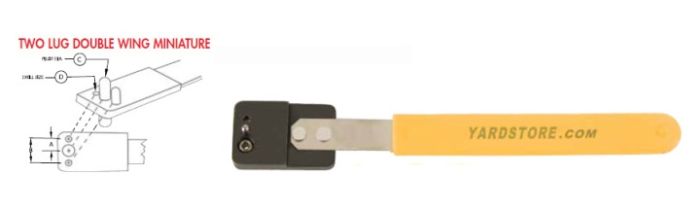

Nut Plate Jig Style 2 Two Lug Double Wing Miniature 518-ND

Don't struggle to accurately drill rivet holes for a nut plate, use one of our many sizes of drilling jigs. Line the jig up on your bolt hole and drill the accompanying rivet holes to secure the plate. Flexible handle makes it easy to keep your hands clear while using the jig. Made in USA.

  • Bolt Size Ref: #10
  • 'A' Dimension: 0.250
  • 'B' Dimension: 0.500
  • 'C' Pilot Diameter: 0.191
  • 'D' Drill Size: #40
