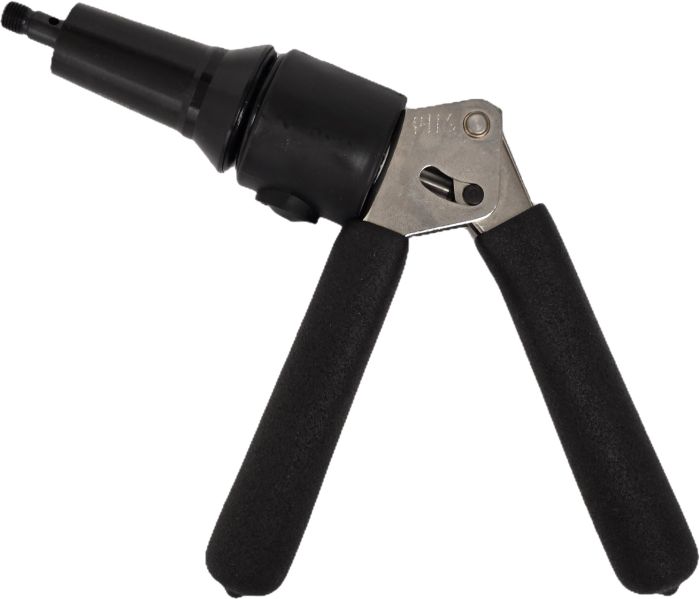

Gage Bilt GB151 Hand Riveter

PN: 18151
Gage Bilt GB151 Hand Riveter

The GB151 is a hydraulic hand riveter designed specifically for the most efficient installation of 1/8", 5/32" & 3/16" CherryMax® rivets with included 456MAX-749-35 nose assembly and is contained in hard plastic carrying case.  The tool and nose assembly weighs only 1.5 lbs and has a 0.565" minimum stroke with a rated pull load of 3,500 lbs.

Technical Specifications:

• Weight: 1.5 lbs
• Power Source: Hand operated.  Two valve, cylindrical hydraulic pump assembly, with pressure relief valve.
• Hydraulic Oil: Chevron AW Machine Oil ISO-10 or equivalent
• Setting Stroke Maximum: 0.565" (14.4 mm)
• Rated Pulling Force Maximum: 3,500 lbs
