Gage Bilt GB731 Installation Tool

PN: 18300

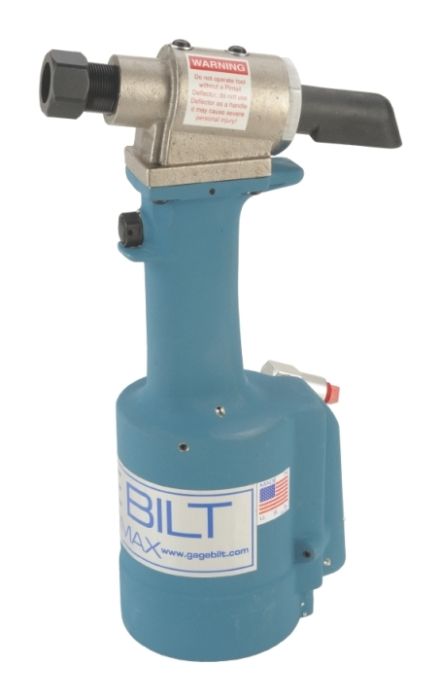

Gage Bilt® GB731 Rivet Puller

The GB731 is a pneumatic hydraulic tool designed specifically for the efficient installation of a wide range of blind rivets and lockbolts. Can be operated in any position with one hand. It has a 0.600" rivet setting stroke and a rated pull load of 4,800 pounds on 90 psi air pressure at the air inlet. Because of the fit and finish of the internal components (far fewer parts than other similar tools), the GB731 minimizes fluid leakage and the need for bleeding. This tool can be bled quickly. Made in USA.

Note: this puller is equivalent to Huck® 230 & 244

• Lockbolts through 1/4"
• Aerospace and commercial blind rivets through 1/4"

• Accepts 3/4" diameter Gage Bilt® and Huck® noses
• Hydraulic return
• Weight: 5.75 lbs.
• Load: 4,800 lbs.
• Stroke: 0.600"
