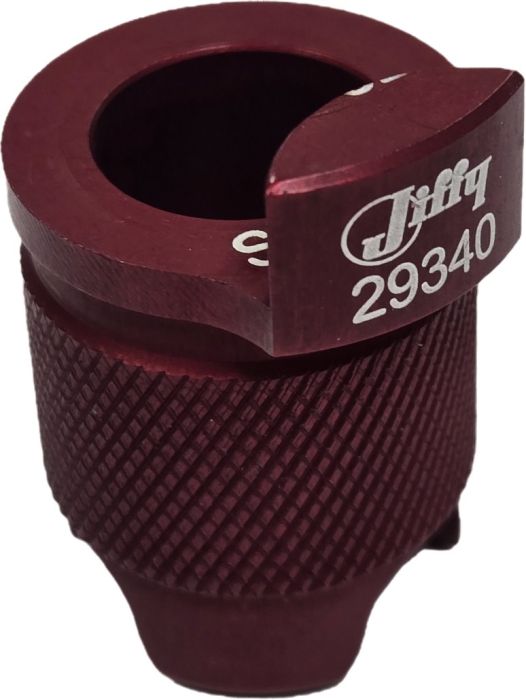

Jiffy 29340 Slip Fit Anodized Aluminum Drill Guide

PN: 29340
Jiffy 29340 Slip Fit Anodized Aluminum Drill Guide

Extreme low-profile mini "egg-cup-style" drill guide for use in hand-held drilling applications with power tools.

• Anodized aluminum body with knurled mid-body for sure grip in restricted access areas.
• Uses common Slip Fixed (hat) bushings used in most airframe manufacturing or modification/repair.
• Three-point radiused-edged feet to provide narrow-point contact and precise perpendicularity on curved surfaces.
• = 0.250" standoff for chip relief
• Body Diameter: 0.813"
• Drill Guide Body Height: 1.235"
• Liner Material: Steel
• Bushing Style: Slip-Fixed Renewable
• Bushing Max Length: 0.75"
• SF-32 1/2" Bushing Max. Drilling Diameter: 0.3438"
